YFG-12H/FC6-WPortable Split Air Conditioner
YFG-12H/FC6-W
YFG-12H/FC6-W
YFG-12H/FC6-W
YFG-12H/FC6-W
YFG-12H/FC6-W
YFG-12H/FC6-W
YFG-12H/FC6-W
YFG-12H/FC6-W
YFG-12H/FC6-W
Product information
● New Concept Portable Split Aircon for Multiple HOME USE Application.
● Modern Simple Streamline Design with Matt Housing Panel.
● Full DC INVERTER Technology.
● 4 in 1 Cooling, Heating ,Fan and Dehumidifying Function.
● Strong Heating Performance with 12000BTU same as Cooling.

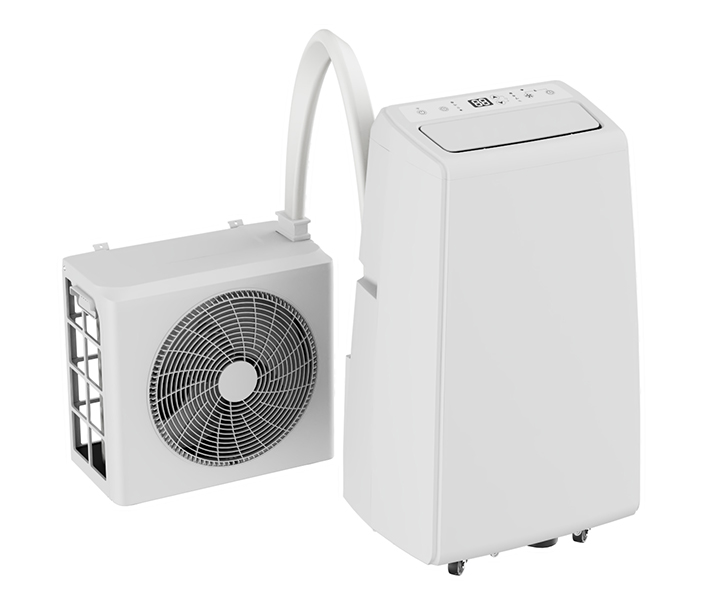

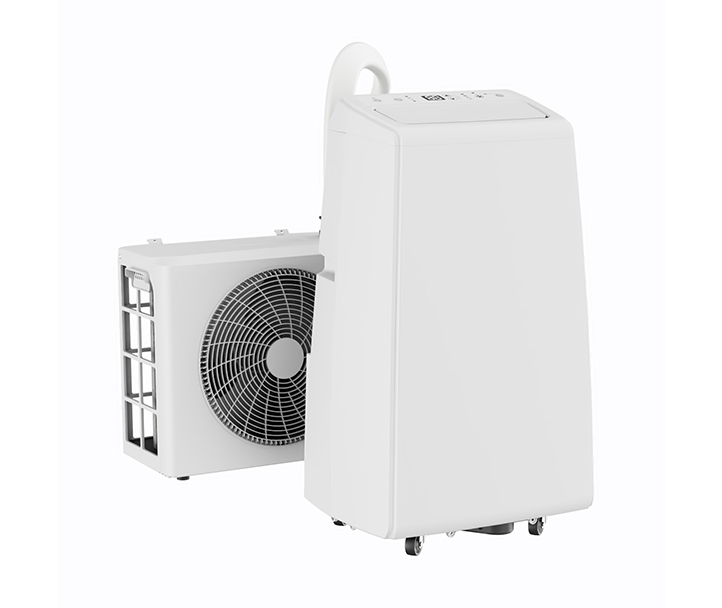

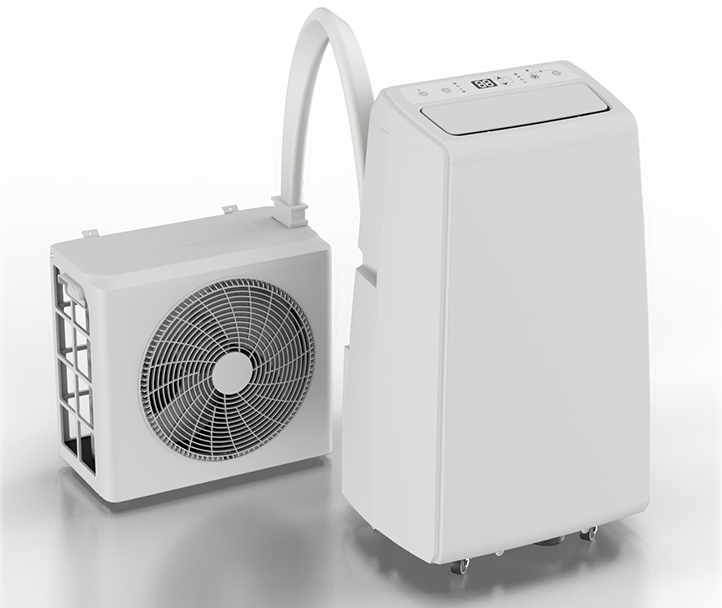

● 2 in 1 Unit including IDU and ODU.
● Big Air Outlet for Comfortable Use.
● Easy Installation with 2 Meters Connection Pipe.
● LED Display and 24 Hours ON/OFF Timer.
● Low Noise Level 39 dB(A) under Sleeping Mode.

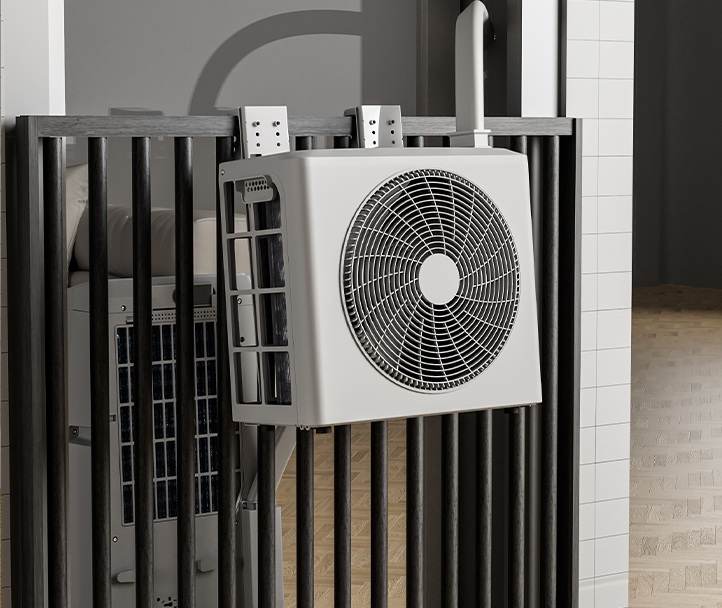

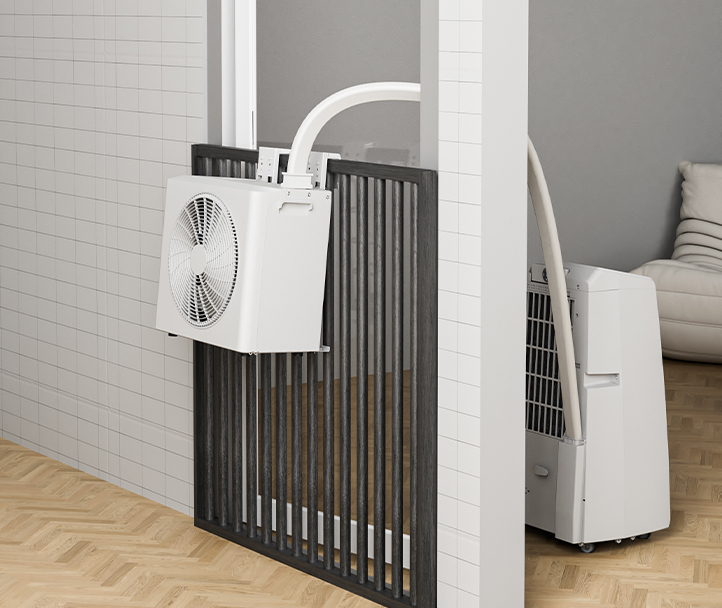

● Easy to Install Wall Brackets Solution Covers Majority of Existing Window Types.
● Environmentally Friendly Refrigerant R32.
● 3 Fan Speeds + Auto Swing.
● Wifi APP Control, Remote Control, Touch Control.
● Multiple Applications including Normal Windows (Brackets Included), Balcony, Roof Windows, French Balcony Windows, Motorhome/Carvan etc.
Technical Parameters
Model YFG-12H/FC6-W
Cooling Capacity 12000 Btu/h (3500W)
Heating capacity 12000 Btu/h (3500W)
Power supply 230V, 50HZ
Cooling Rated input 1200 W
Cooling Rated Current 7.0 A
Heating Rated input 1100 W
Heating Rated Current 6.0 A
SEER 5.6（A+）
SCOP 4.0（A+）
Air Flow (m³/h) 450/420/370/320/245
Noise (dB(A)) 51/50/49/47/39
Noise (ODU sound pressure level)57 dB(A)
ODU Ambient temperature (Cooling) 0~45°C
ODU Ambient temperature (Heating) -10~24°C
Inside Unit Size (W x D x H) 430x320x730 mm
Outside Unit Size (W x D x H) 492x263x460 mm
Package Size (W x D x H) 695x575x890 mm
Net Weight(ODU) 10.0kg
Net Weight(IDU) 22.0kg
Net Weight 34.5kg
Gross Weiht 43.0kg
Appliation Area 105m³
Loading capacity 64/136/202pcs
